Quick Fit Solderless 2 End Wire Cable For DC LED Strip Lights

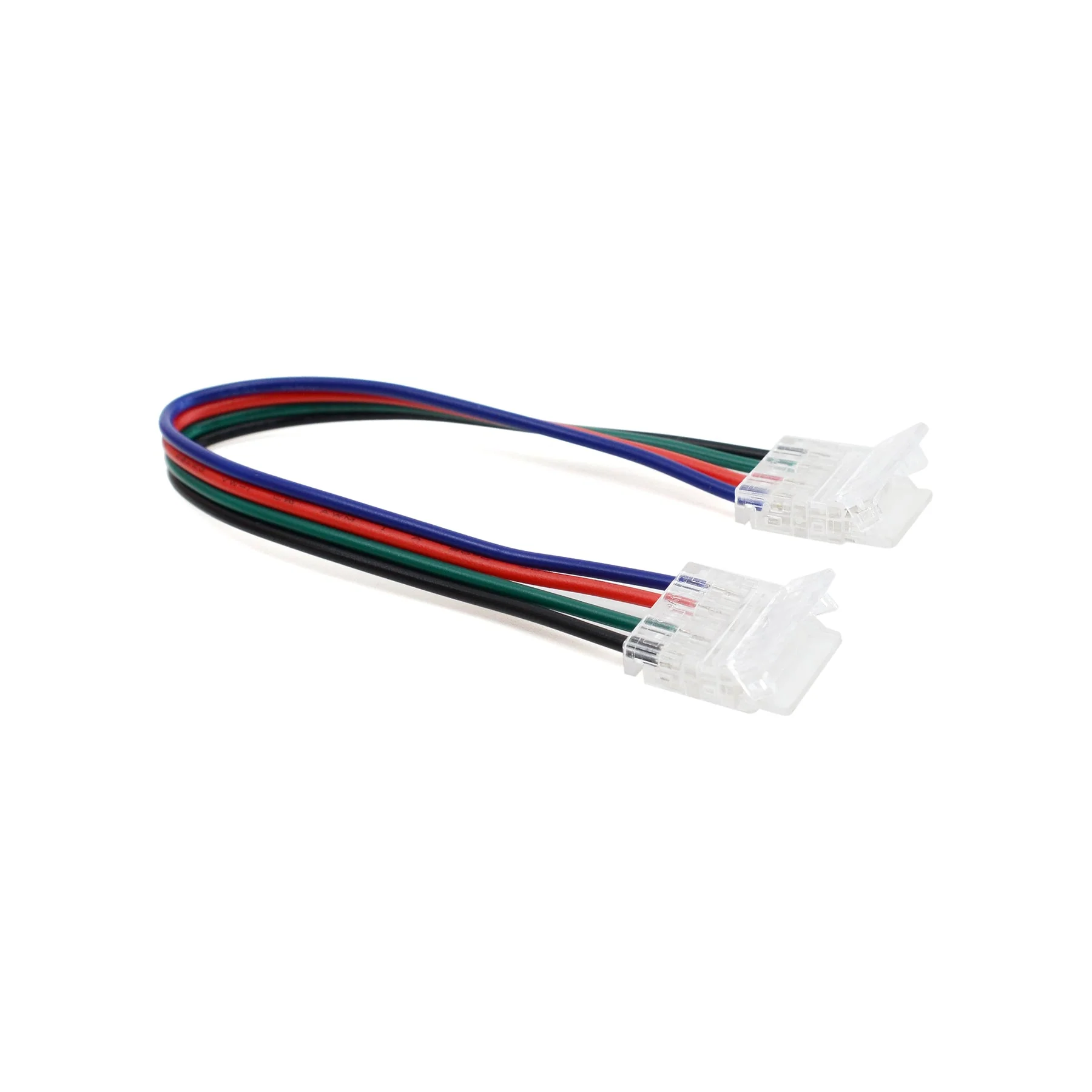

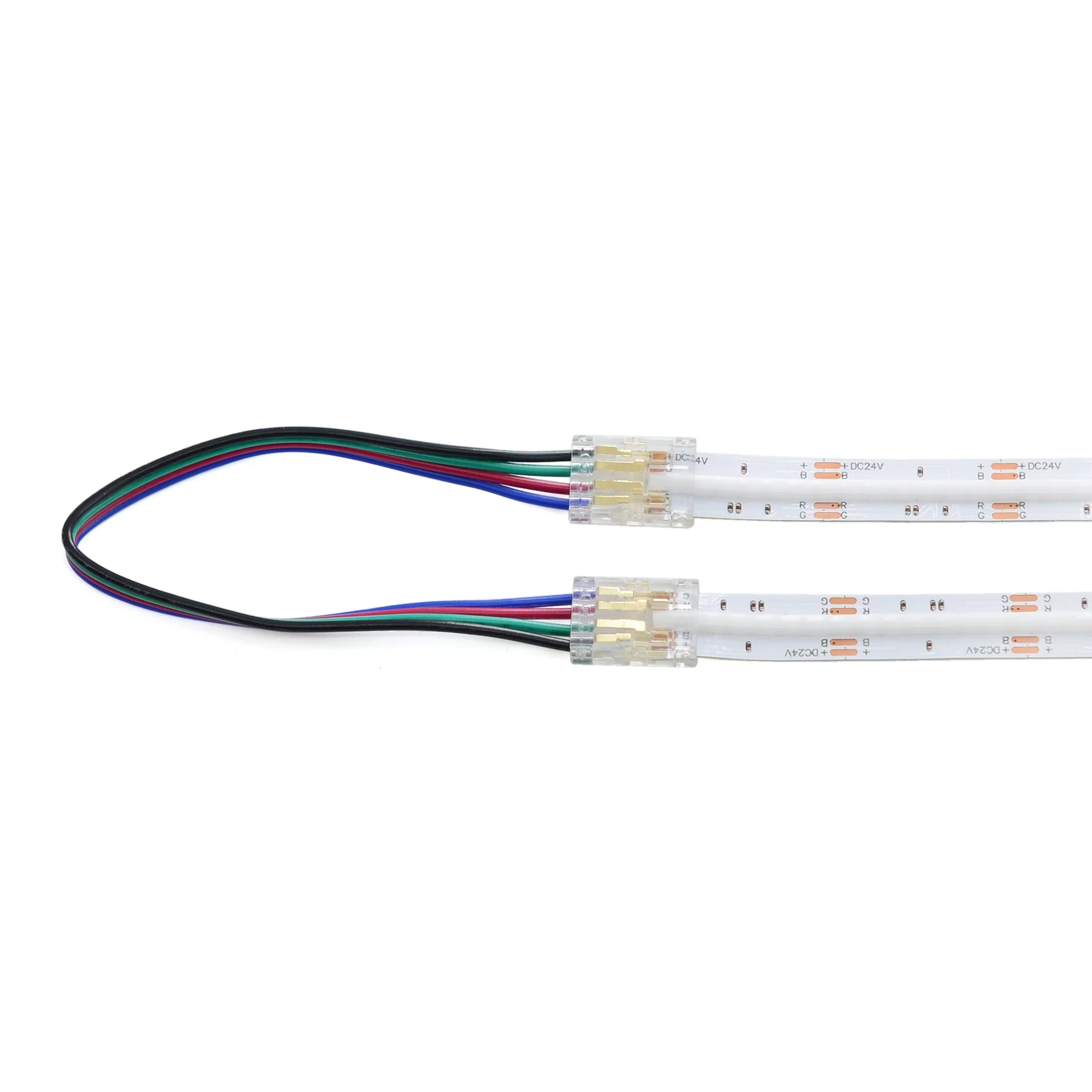

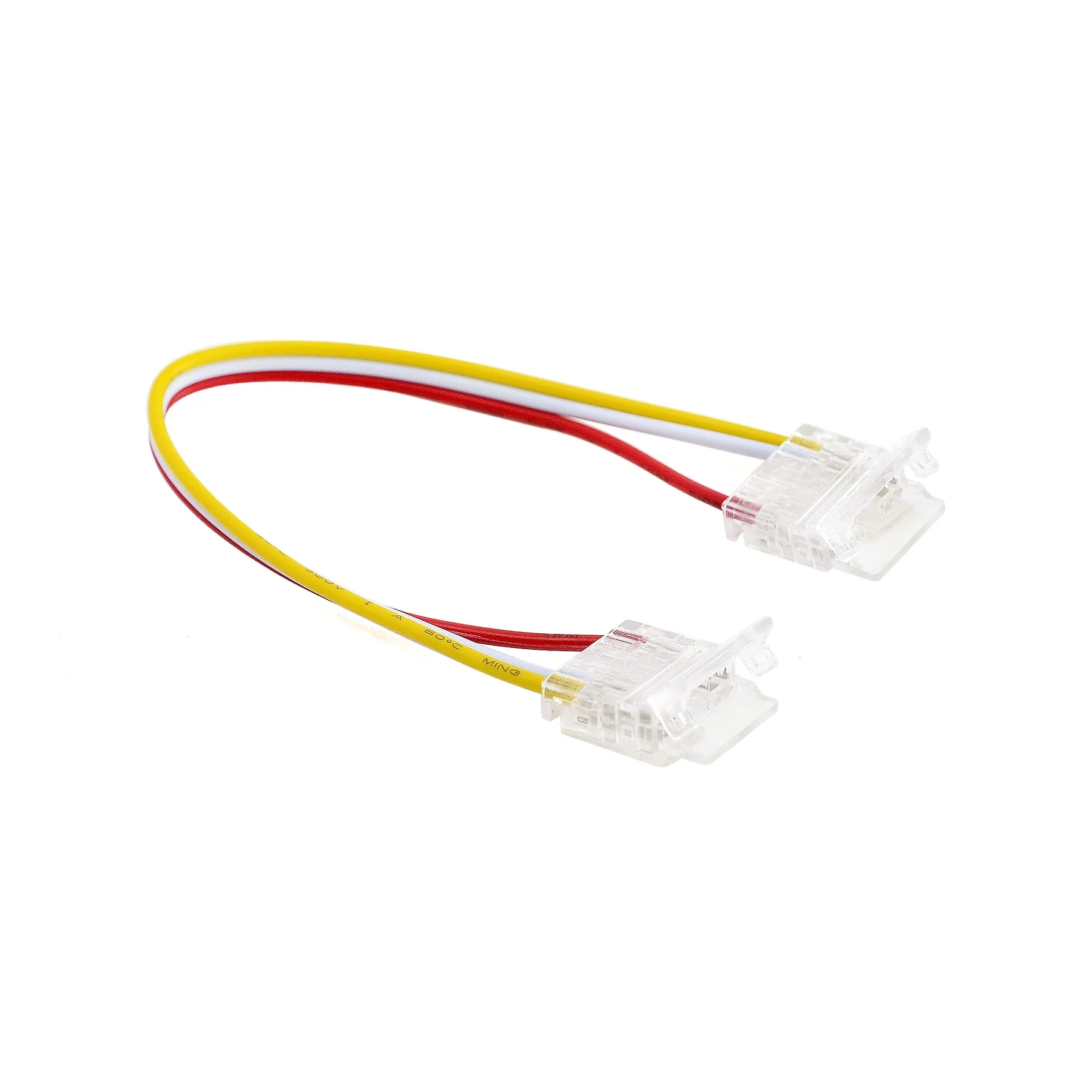

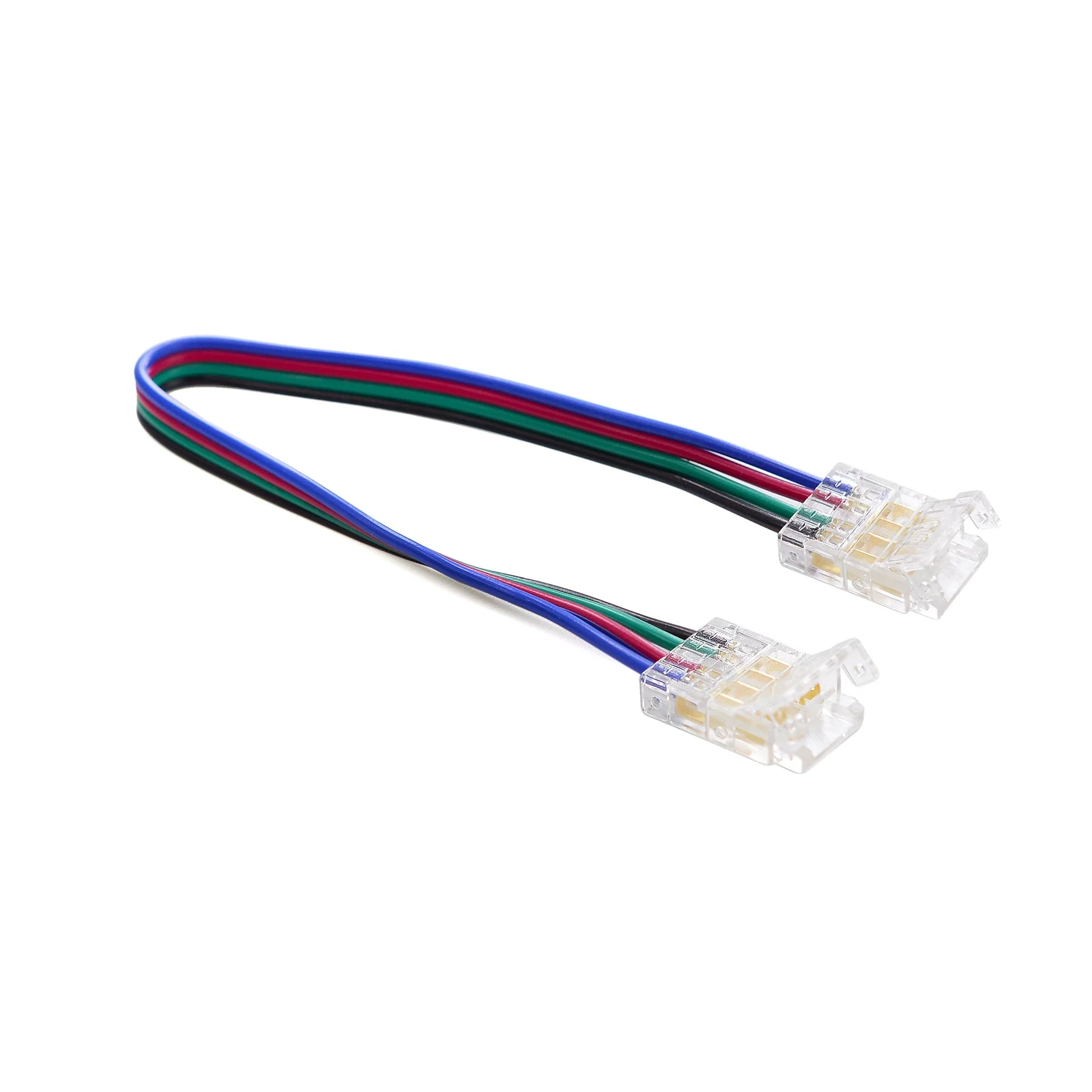

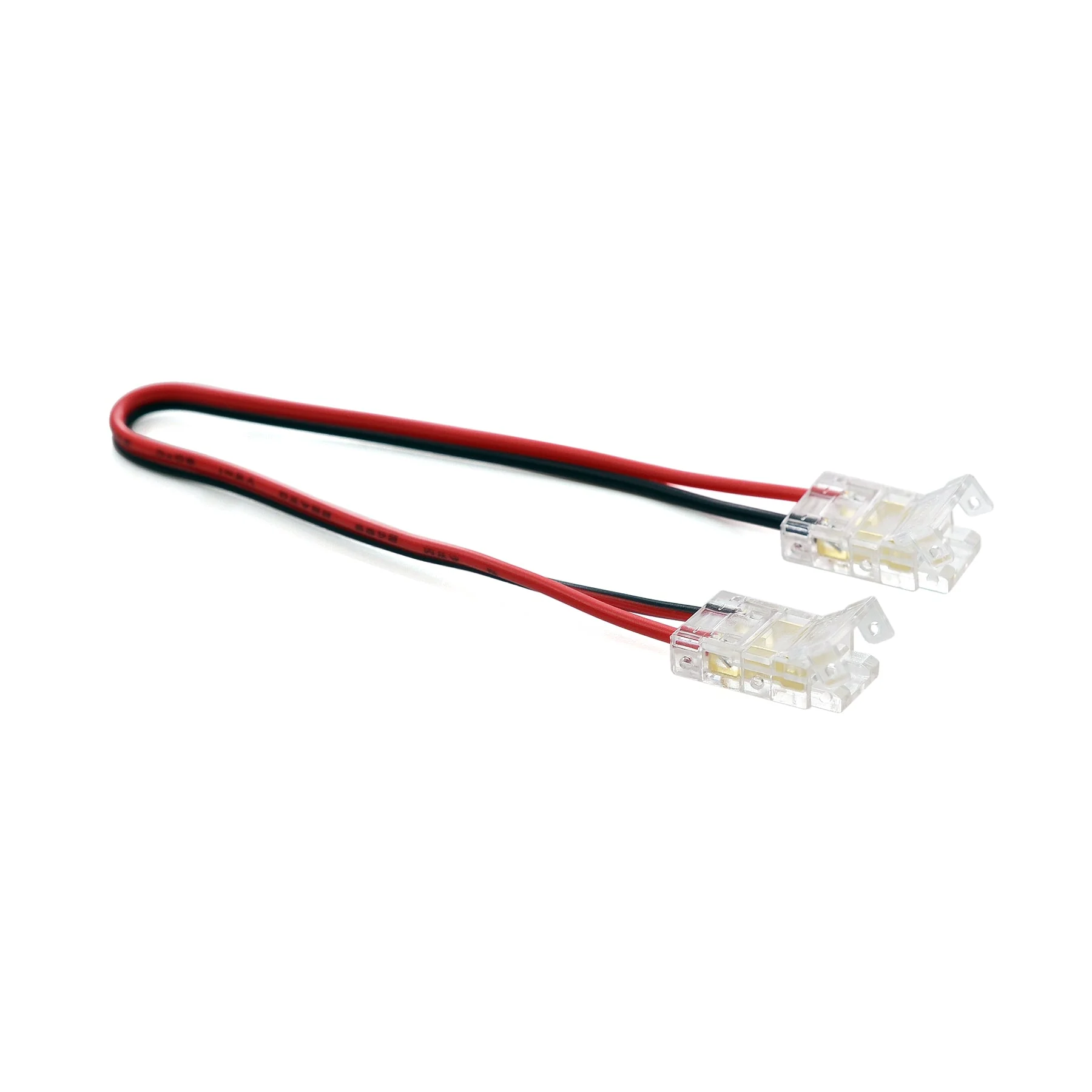

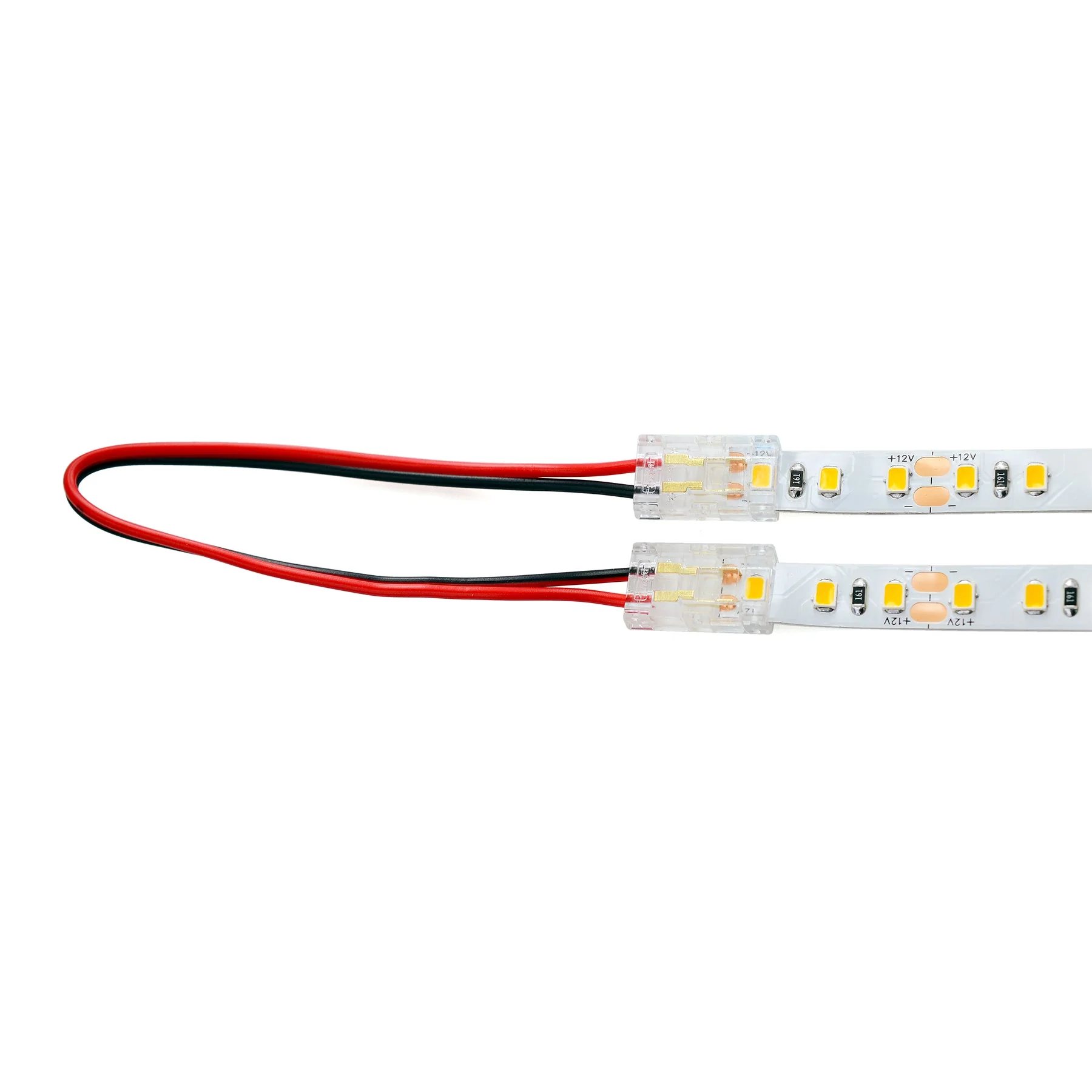

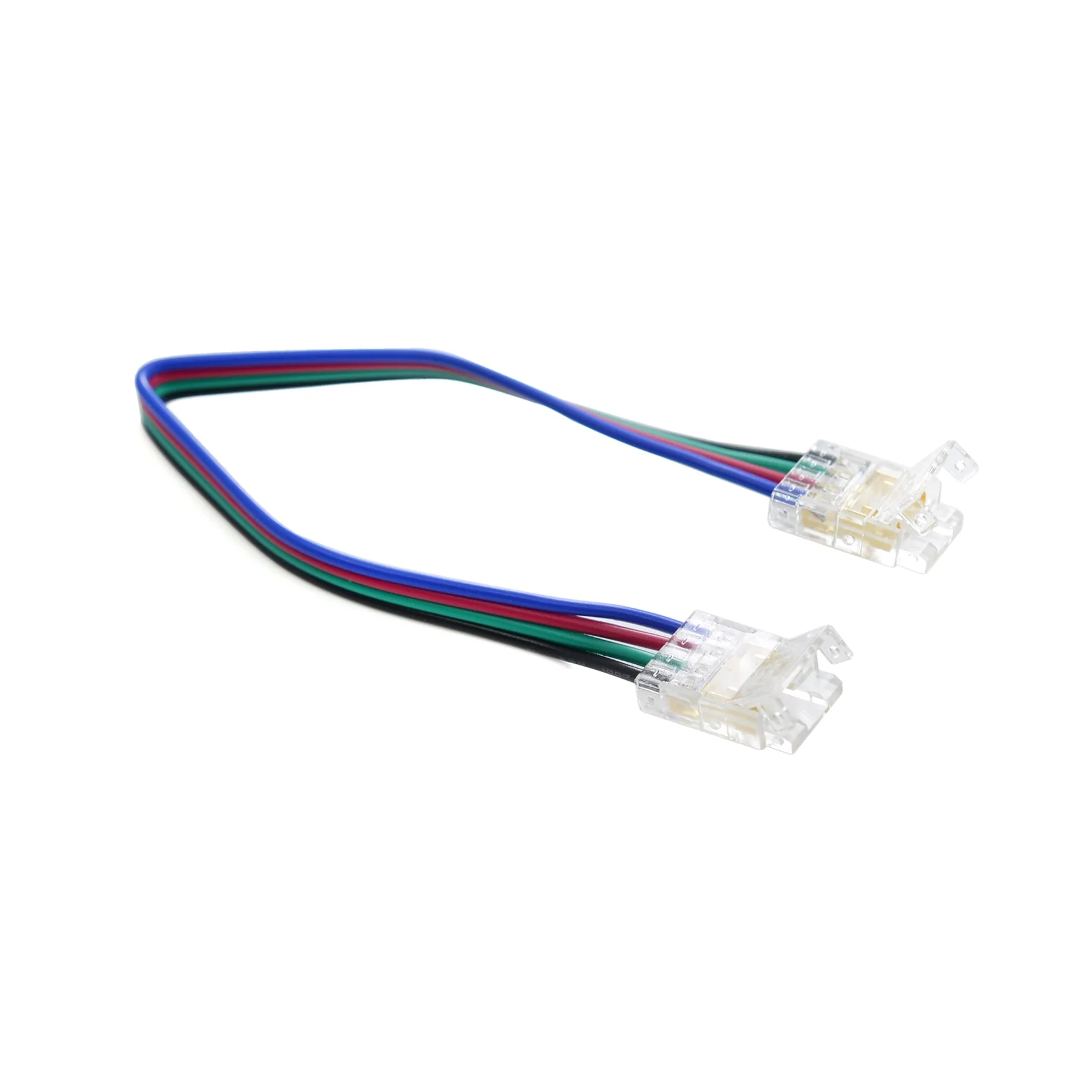

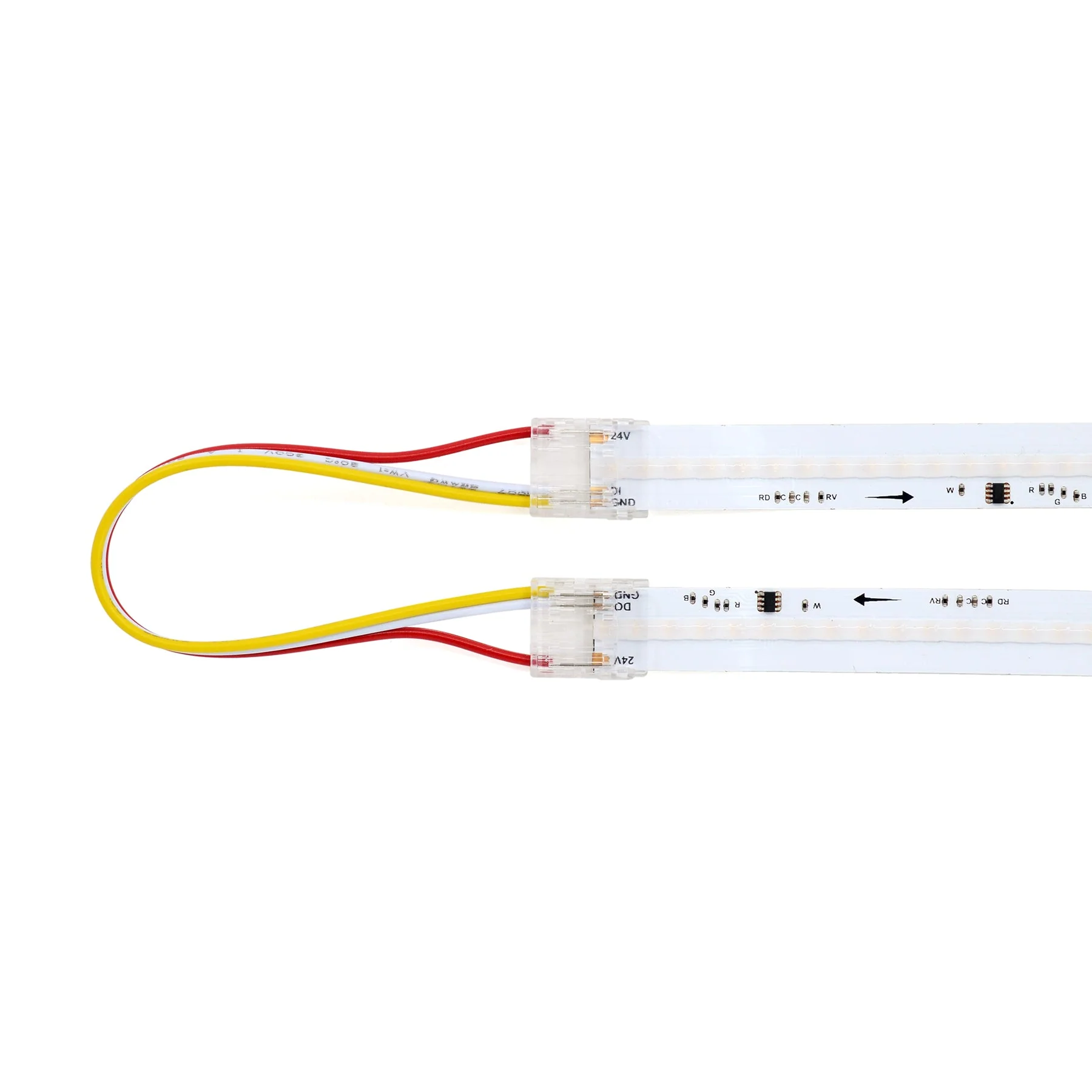

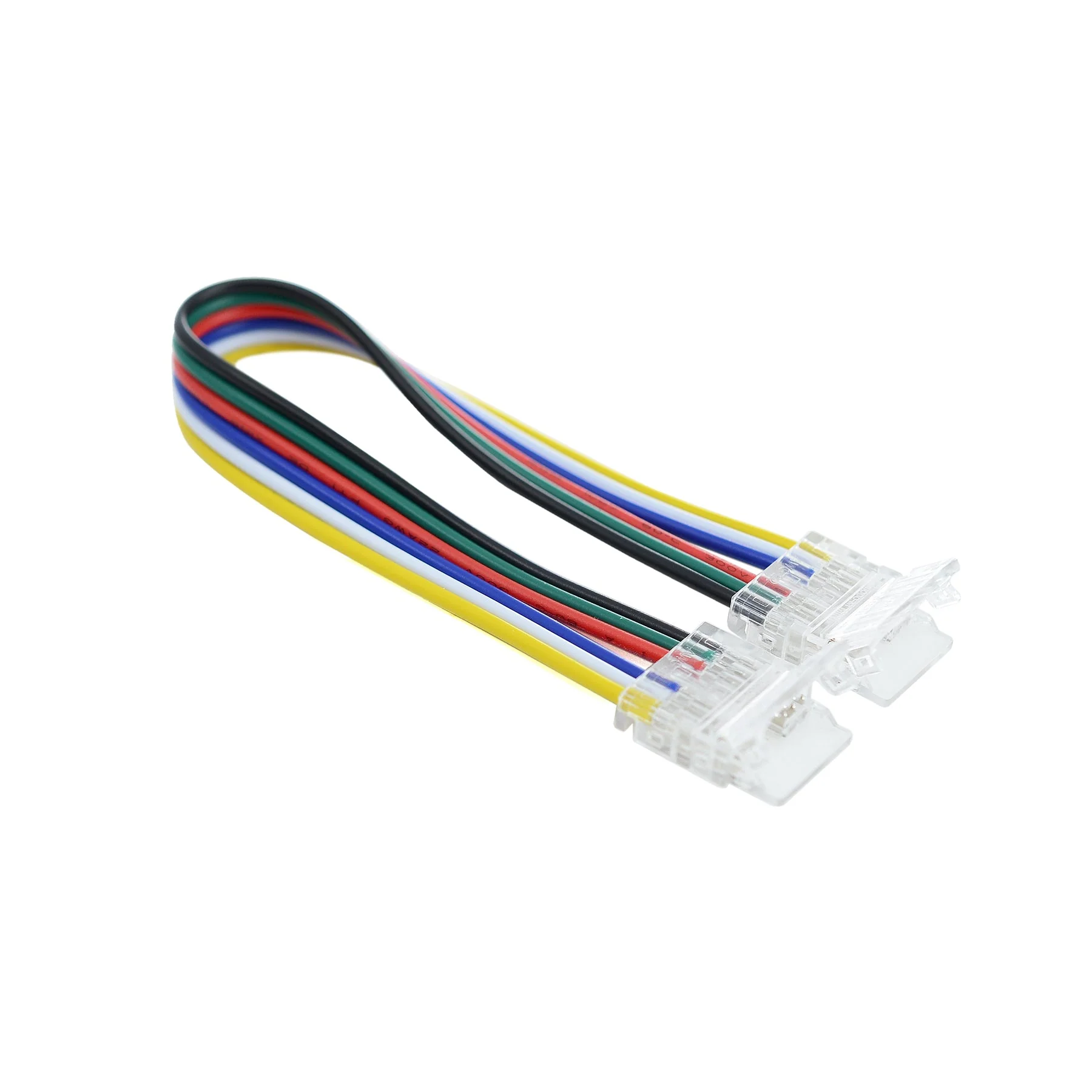

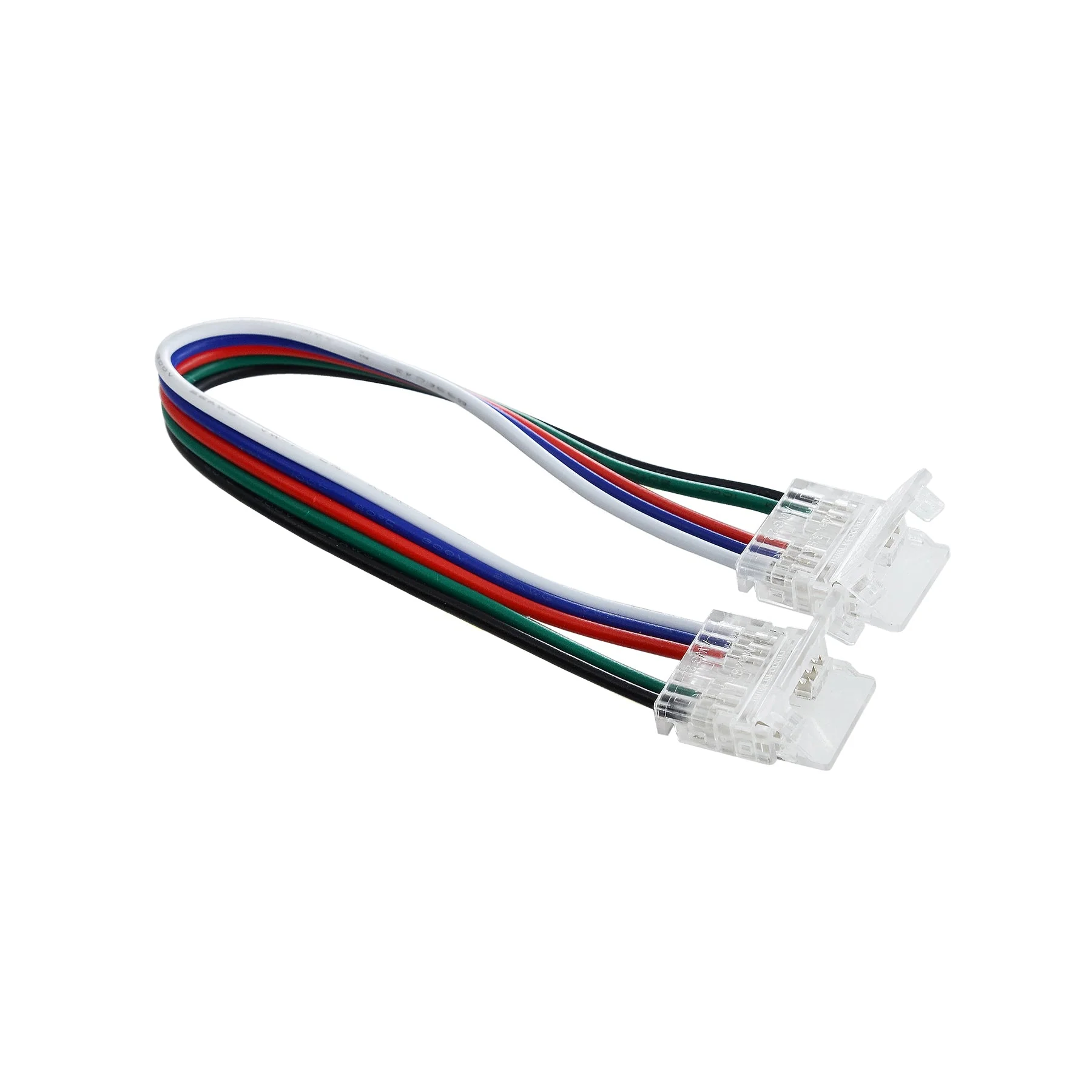

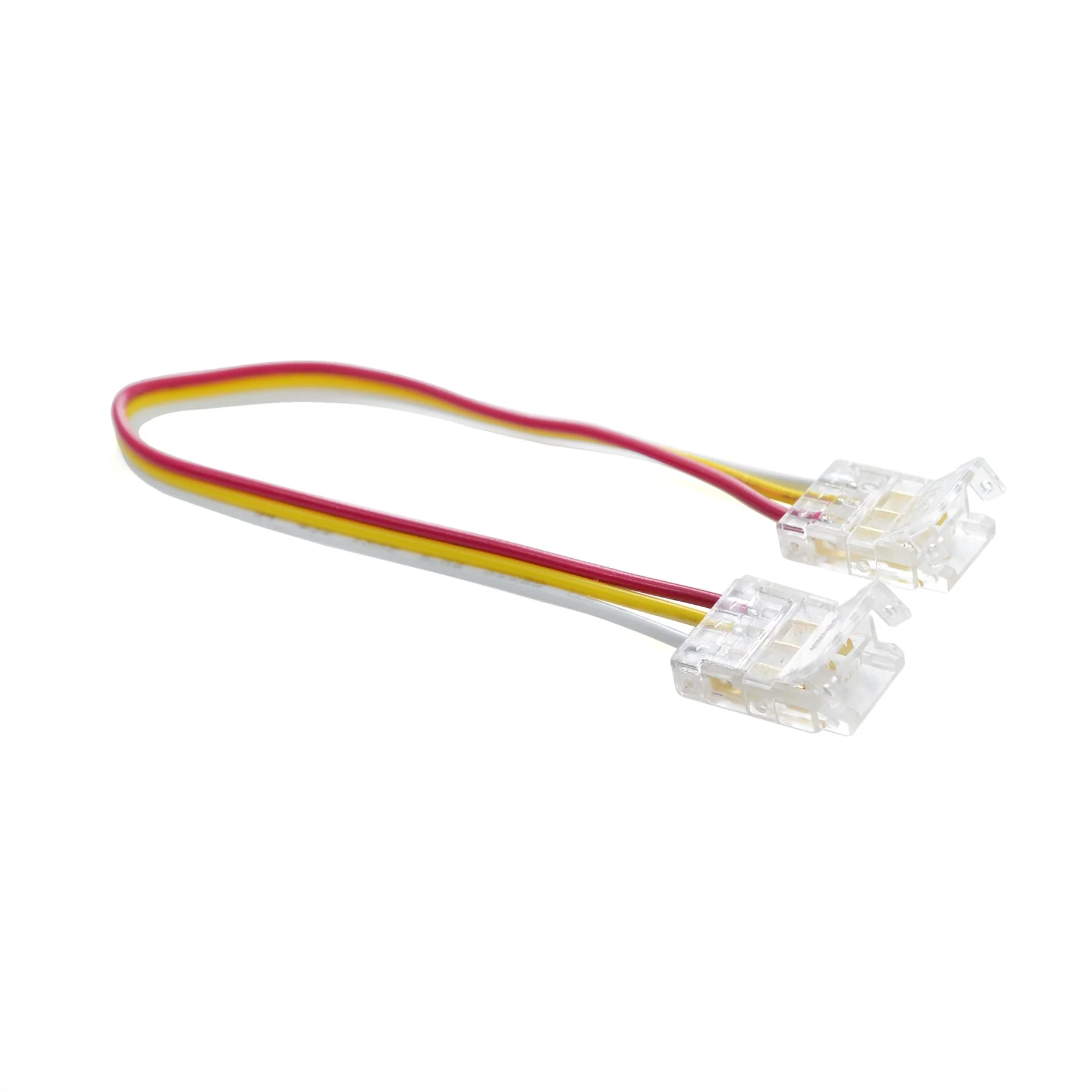

A pre-wired, solderless connector cable for DC low voltage LED strips. It allows you to join two LED strips or extend a strip without soldering, making installations cleaner and faster.
How to Use:
- Turn off the power – Always disconnect the power supply first.
- Cut the LED strips – Cut only on the marked cut line.
- Open the connectors – Lift the small plastic clips on each end.

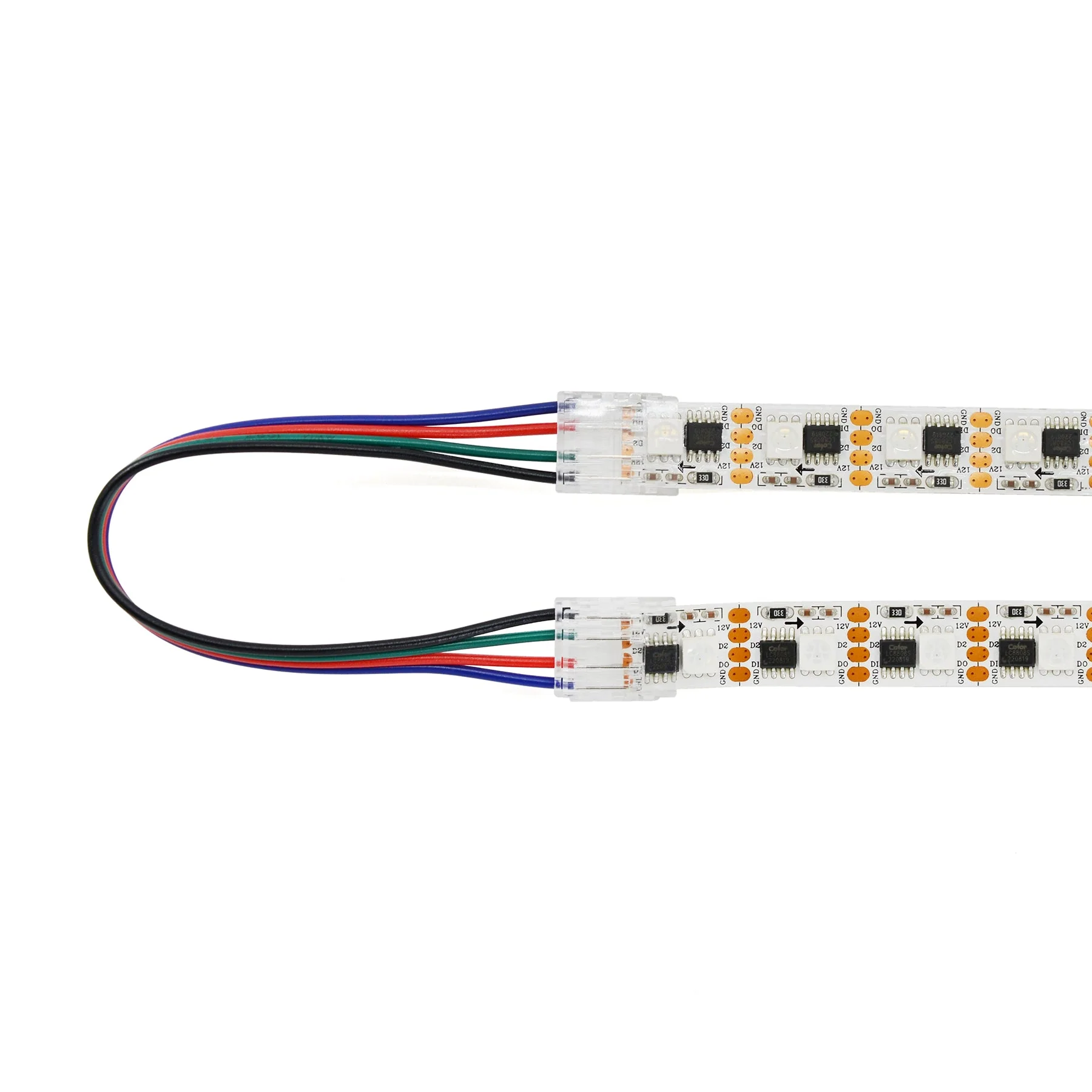

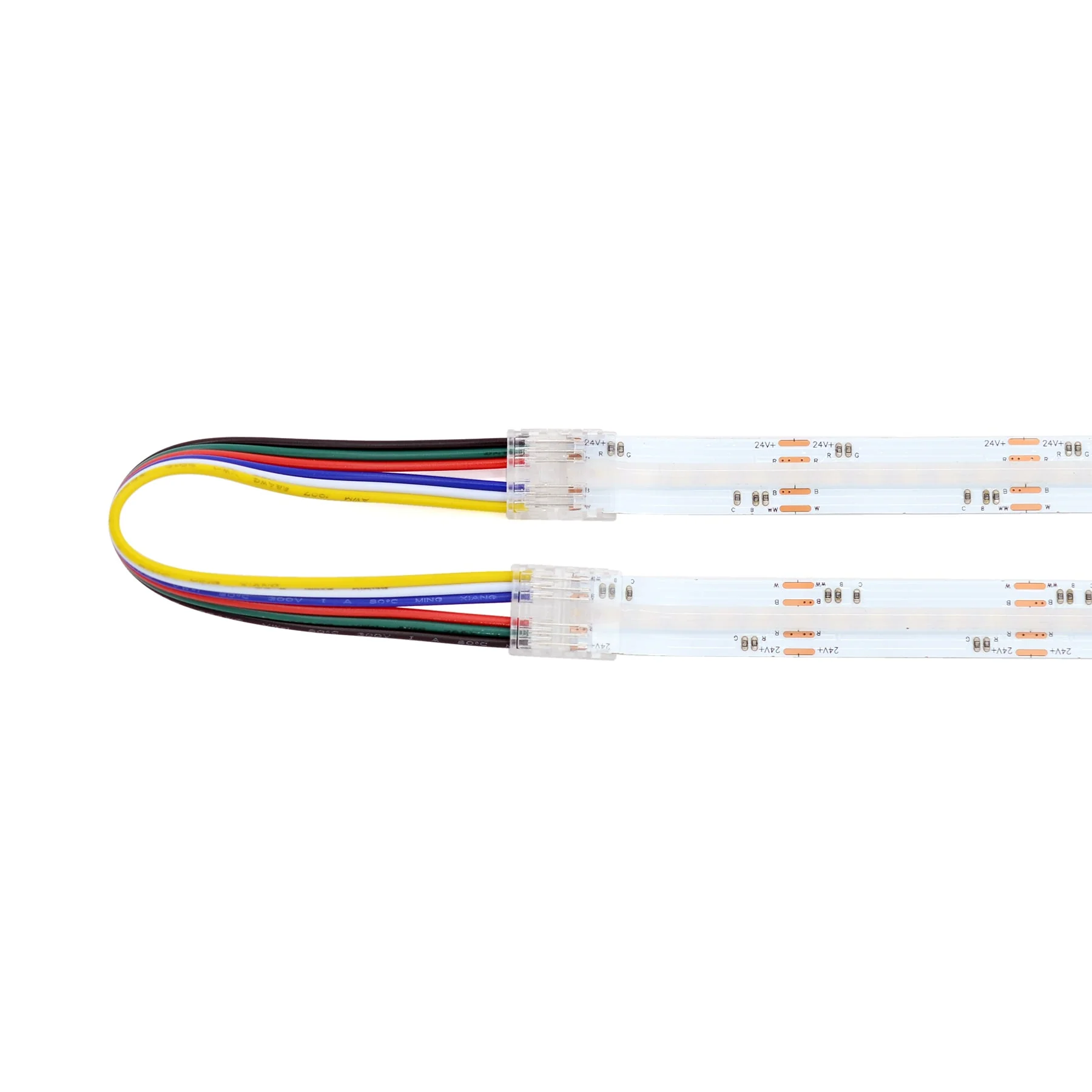

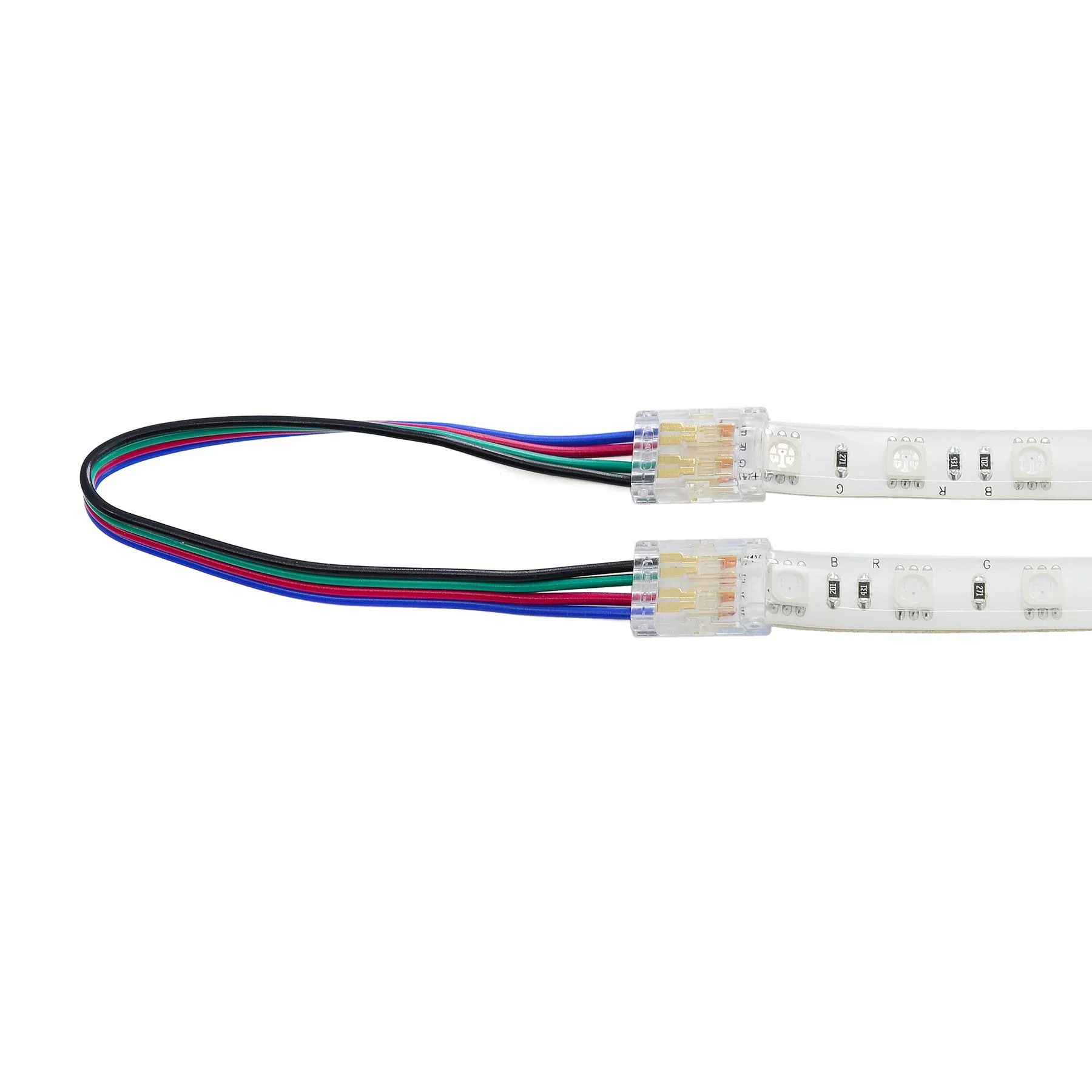

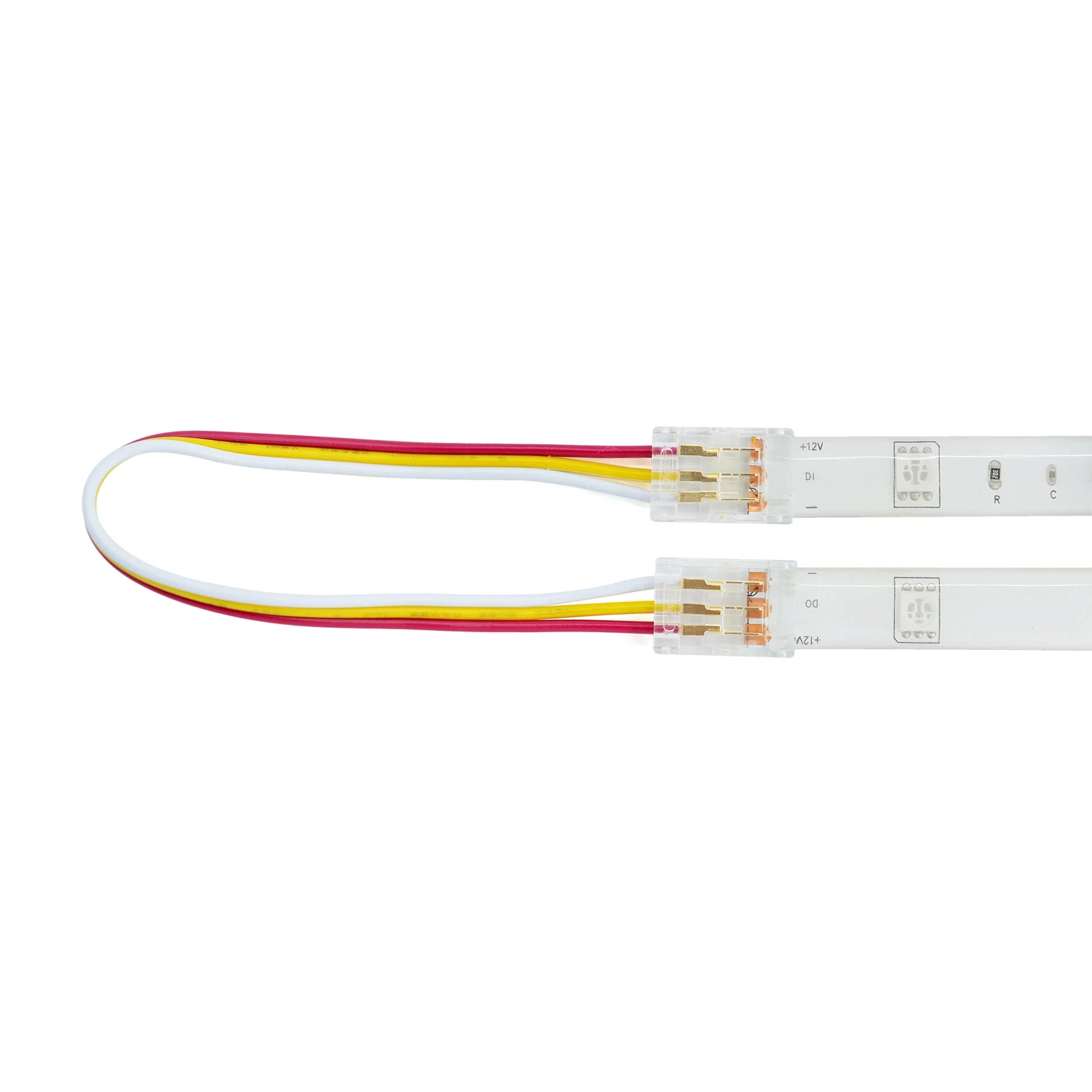

- Insert the LED strips – Slide each strip into one end of the connector. Ensure the copper pads sit under the metal pins.

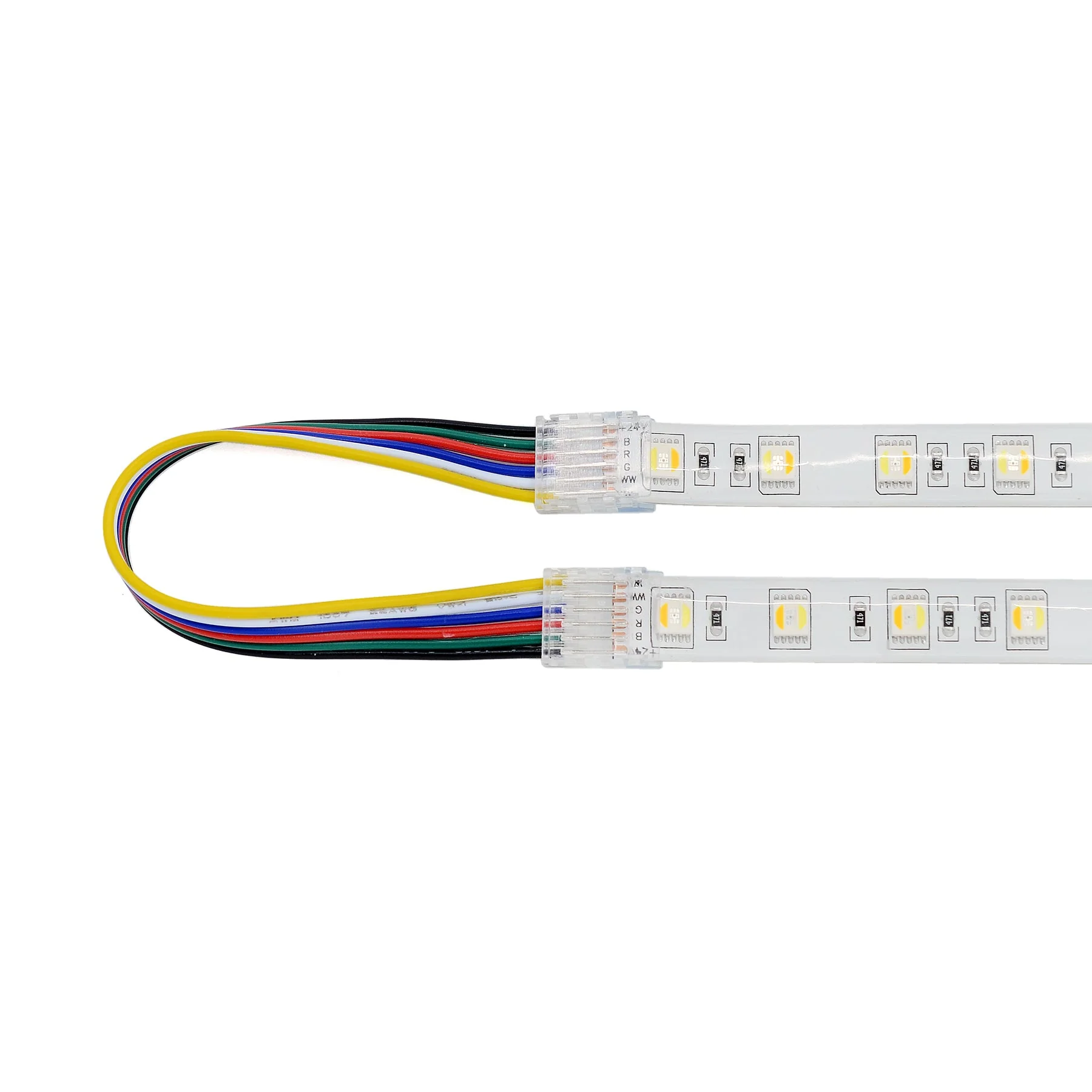

- Align all pins – For multi-channel strips (RGB, RGBW, etc.), make sure each channel matches correctly.
- Close the clips firmly – Press down until they click shut.
- Test the connection – Turn the power back on and check the strips light up correctly.
Notes:
- Supplied as a pack of 5 connectors.
- Double-check polarity (+ / –) before closing the connector to ensure correct operation.
- For DC low voltage LED strips only. Not suitable for mains or high voltage strip lights.
| Product | Cable length (cm) | L (mm) | W (mm) | H (mm) |
| SMD 8MM 2PIN 2END | 15 | 17.5 | 10 | 4.5 |
| SMD 10MM 2PIN 2END | 15 | 17.5 | 11.7 | 4.5 |
| SMD 10MM 3PIN 2END | 15 | 17.5 | 11.7 | 4.5 |
| SMD 10MM 4PIN 2END | 15 | 17.5 | 11.7 | 4.5 |
| SMD 12MM 4PIN 2END | 15 | 17 | 13.8 | 4.5 |
| SMD 12MM 5PIN 2END | 15 | 17 | 13.8 | 4.5 |
| SMD 12MM 6PIN 2END | 15 | 17 | 13.8 | 4.5 |
| Product | Cable length (cm) | L (mm) | W (mm) | H (mm) |
| COB 5MM 2PIN 2END | 15 | 17.5 | 6.7 | 4.5 |
| COB 8MM 2PIN 2END | 15 | 17.5 | 10 | 4.5 |
| COB 10MM 2PIN 2END | 15 | 17.5 | 11.7 | 4.5 |
|
COB 10MM 3PIN 2END
|
15 | 17.5 | 11.7 | 4.5 |
| COB 10MM 4PIN 2END | 15 | 17.5 | 11.7 | 4.5 |
| COB 12MM 3PIN 2END | 15 | 16.6 | 14 | 4.5 |
| COB 12MM 5PIN 2END | 15 | 16.6 | 14 | 4.5 |
| COB 12MM 6PIN 2END | 15 | 16.6 | 14 | 4.5 |
